Dashboard

Dashboard

A dashboard is a centralized platform that presents diverse visual data in a single location. It offers a customizable visual representation of your data, allowing users to tailor it to their specific needs and preferences.

It is used to track and analyze the data.


Navigate to Asses App Admin and click on the Dashboard option.

The existing dashboards will be shown and click on the Create Dashboard button.


The admin is required to input the name of the dashboard, and the classification of widgets will be determined based on the chosen module.



QMS Widgets

  1. To-Do List - The To-Do list will be listed for the Reviewer and Approver for the items to be reviewed and approved.
  1. My Recent Items - The Recent Items displays the recent Questions, Exams accessed by the user.
  1. My Filters - My Filters displays the Filters saved privately in Questions, Exams, Delivery sub-module
  1. Question Status - Questions Status displays the total number of Questions in Draft, Approved, In Review, In Approval and Archived status.

OE Widgets

  1. Exam List - The Exam List displays to the Invigilator in which the user is assigned as an Invigilator to the Exam.
  1. Marker Exam List - The Marker Exam List displays to the Marker in which the user is assigned as an Marker to the Exam.

WBA Widgets

  1. My Assessments - My Assessments will be displayed to the Admin, Lead Examiner, Co-Examiner of the Assessments.
  1. Assessment Feeds - Assessment Feeds will be displayed to the Admin.

iLog Widgets

  1. To Do List - The To-Do list displays the Logs to be approved by the Admin.
  1. My Recent Items - My Recent Items displays the recent Logs of the User.
  1. My Filters - My Filters displays the Filters saved privately in the Logs.

"Sharing with Roles" specifies which roles the admin is providing access to view a specific dashboard.

Clicking on Save the Dashboard will be created.

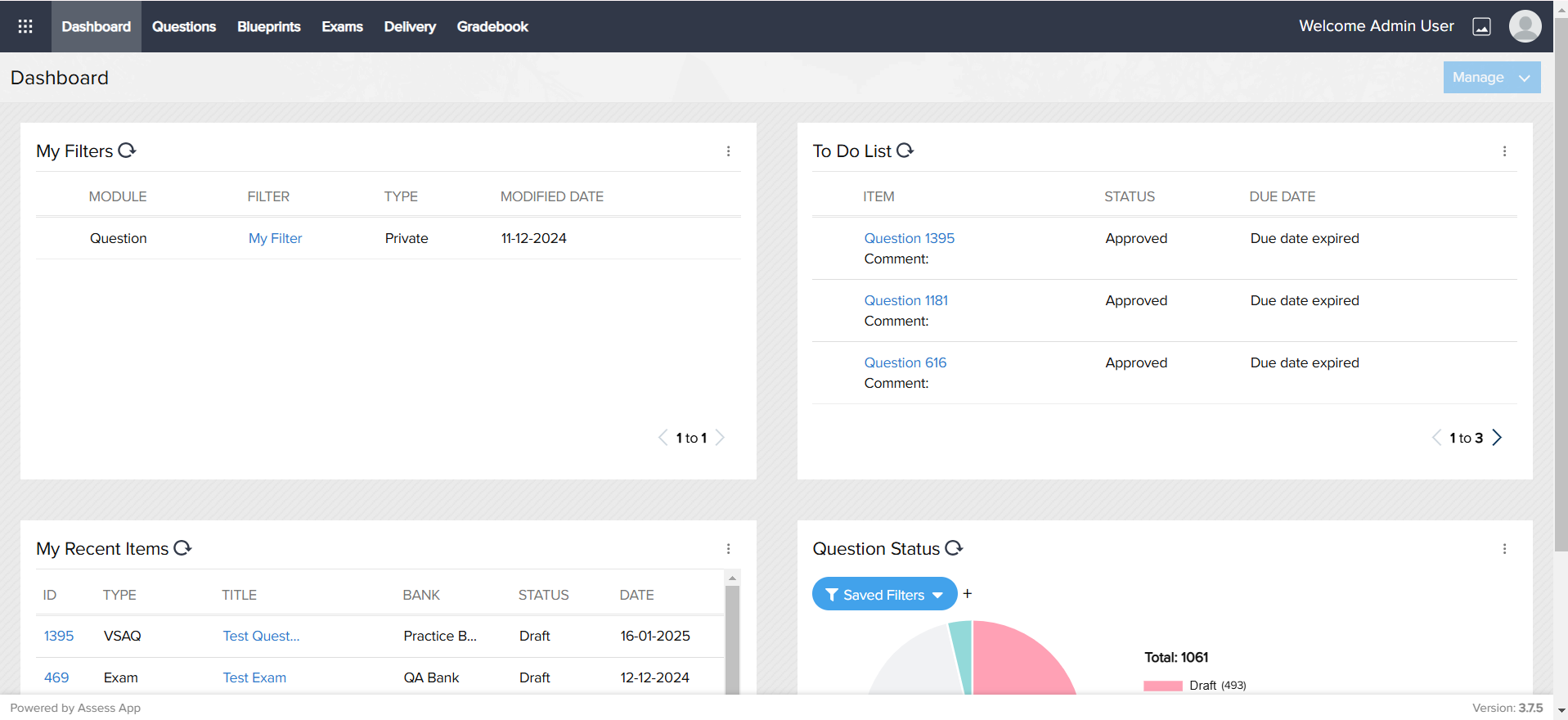

The Dashboard created will display in the iAuthor module Dashboard sub-module.


If any widgets are hidden, using the Manage option they will be displayed in the Dashboard list.

How to Create Dashboard Video Tour
